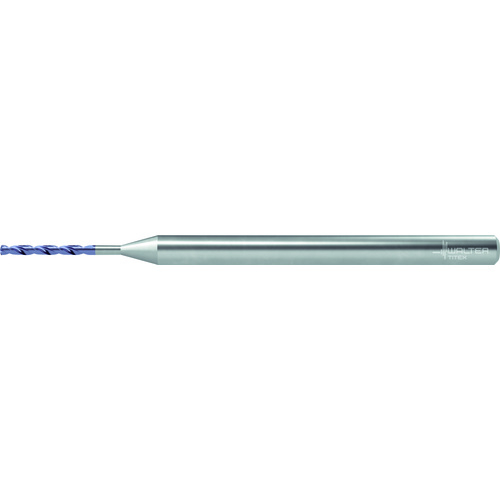

DB133-05-01.350A1-WJ30EL
SC Drill; 1.35 mm Dia. × 3 mm Shank Dia. × 53 mm OAL × 12 mm LCF ; 140 Degrees ; 5xD ; AlCrN ; Series DB133
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 1.35 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Micro Drills |
| Coating | AlCrN | Grade | WJ30EL |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Series/List # | DB133 |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 9 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 12 mm |
| Functional Length (LF) | 12 mm | Overall Length (OAL) | 53 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 35 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | DIN 6535 HA |
Product Features
| Country of Origin | France |
