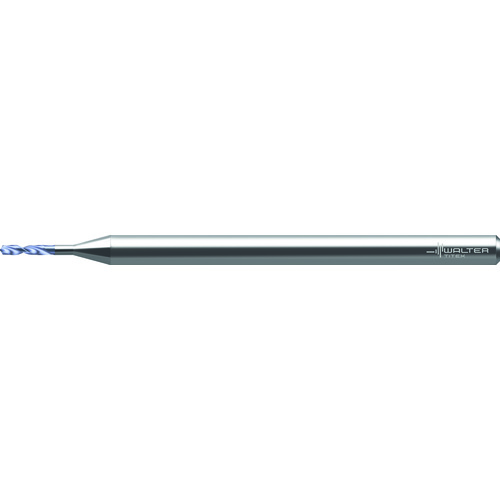

DB131-02-01.800A0-WJ30EL
SC Drill; 1.8 mm Dia. × 3 mm Shank Dia. × 54 mm OAL × 9 mm LCF ; 150 Degrees ; 2xD ; AlCrN ; Series DB131
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 1.8 mm | Cutting Edge Material | Carbide |
| Length Group | 2xD | Tool Type | Micro Drills |
| Coating | AlCrN | Grade | WJ30EL |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Series/List # | DB131 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 6 mm |
| Point Angle (SIG) | 150 Degrees | Length Chip Flute (LCF) | 9 mm |
| Functional Length (LF) | 9 mm | Overall Length (OAL) | 54 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | DIN 6535 HA |
Product Features
| Country of Origin | France |
