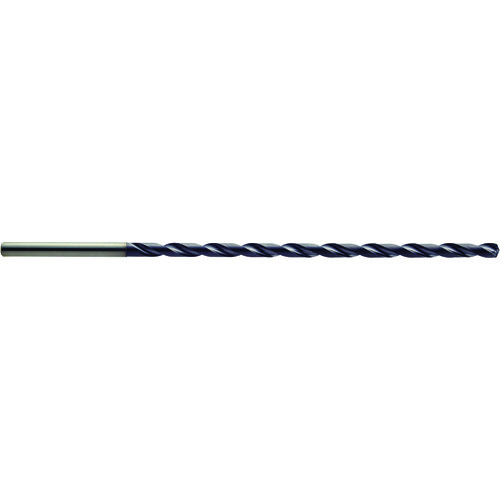

SC Drill; 6.7 mm Dia. × 7 mm Shank Dia. × 182 mm OAL × 126 mm LCF ; 140 Degrees ; 15xD ; TiAlN ; Series DH515
SC Drill; 6.7 mm Dia. × 7 mm Shank Dia. × 182 mm OAL × 126 mm LCF ; 140 Degrees ; 15xD ; TiAlN ; Series DH515
| Drill Bit Size / Cutting Diameter (DC) | 6.7 mm | Point Length (PL) | 1.219 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2638″ | Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.2638″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Tool Type | Dream Drills MQL |
| Length Group | 15xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | DH515 |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 126 mm |
| Application | Steel | Overall Length (OAL) | 182 mm |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 140 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
10.375
Package Width
0.75
Package Height
0.75
Package Weight
0.06
