5MM ADFO-3D

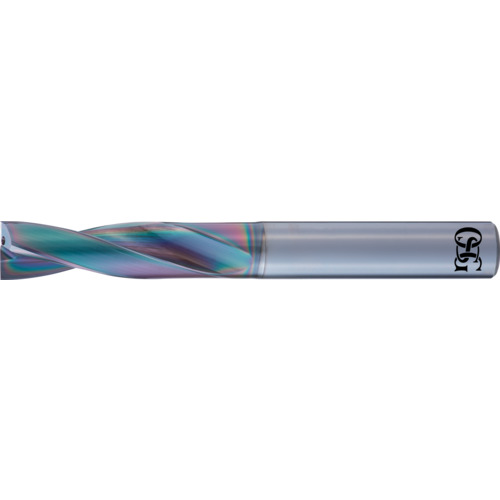

SC Drill; 5 mm Dia. × 6 mm Shank Dia. × 65 mm OAL × 24 mm LCF ; 0 Degrees ; 3xD ; EgiAs ; Series 5720
| Drill Bit Size / Cutting Diameter (DC) | 5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5 mm | Tool Type | Stub Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 5720 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 24 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 65 mm |
| Point Angle (SIG) | 0 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 24 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.045
