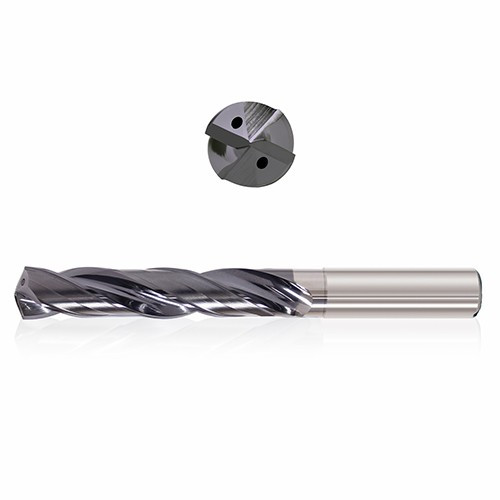

0.4375 mm Dia. × 12 mm Shank × 71 mm Flute Length × 118 mm OAL, 5xD, 150°, Varianta Supral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
SC Drill; 0.4375 mm Dia. × 12 mm Shank Dia. × 118 mm OAL × 71 mm LCF ; 150 Degrees ; 5xD ; Helical Flute ; Varianta Supral ; Series PXC
| Drill Bit Size / Cutting Diameter (DC) | 11.11 mm | Shank Standard | h6 |
| Decimal Equivalent | 0.0172″ | Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.11 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Pilot Drill |
| Coating | TiAICN | Flute Type | Helical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | H5009 Varianta Supral |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 54.3 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 71 mm |
| Point Angle (SIG) | 150 Degrees | Overall Length (OAL) | 118 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | SINGLE-MARGIN DRILL |
| Shank Length (LS) | 47 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 150° Point, Single Margin, Pilot Drill, Coolant Through | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
