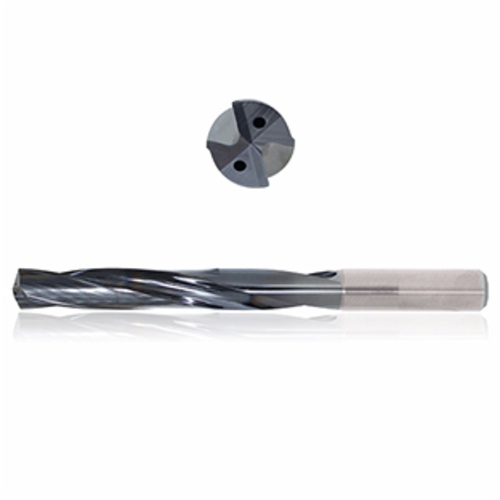

0.4844 mm Dia. × 14 mm Shank × 230 mm Flute Length × 280 mm OAL, 16xD, 135°, Sistral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
SC Drill; 0.4844 mm Dia. × 14 mm Shank Dia. × 280 mm OAL × 230 mm LCF ; 135 Degrees ; 16xD ; Helical Flute ; Sistral ; Series NXC
| Drill Bit Size / Cutting Diameter (DC) | 12.3 mm | Shank Standard | h6 |
| Decimal Equivalent | 0.0191″ | Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.3 mm | Cutting Edge Material | Carbide |
| Length Group | 16xD | Tool Type | Solid Carbide Drill |
| Coating | AITiN | Flute Type | Helical |
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Grade | H5007 Sistral |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Usable Length (LU) | 211.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 230 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 280 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | DOUBLE-MARGIN DRILL |
| Shank Length (LS) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Country of Origin | Usa | ItemRemark | click here for cutting data |
