.2480X8MMX34MMX79MM 2FL

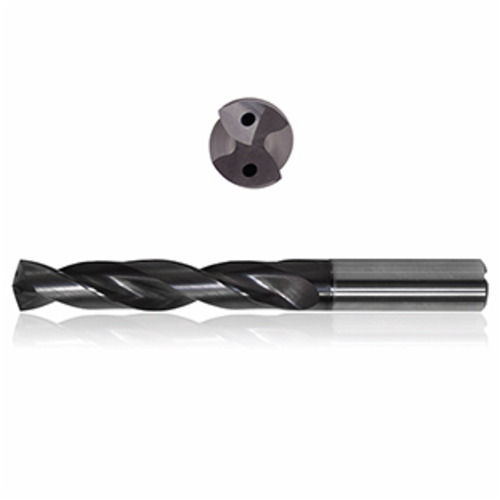

SC Drill; 0.248 mm Dia. × 8 mm Shank Dia. × 79 mm OAL × 34 mm LCF ; 140 Degrees ; 3xD ; Helical Flute ; Sistral ; Series HXC
| Drill Bit Size / Cutting Diameter (DC) | 0.248 mm | Shape | Round |
| Decimal Equivalent | 0.0098″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Flute Type | Helical |
| Coating | Sistral | Grade | H5007 |
| Applicable Material | Stainless Steel | Hard Materials | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | HXC |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 0.9666 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 34 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 79 mm |
| Number of Teeth | 2 | Flute Count (NOF) | 2 |
| Shank Length (LS) | 1.7716 mm | Feature | SINGLE MARGIN DRILL, COOLANT THRU, HARD MATERIALS |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 | Body Material | Carbide |
Product Features
| Country of Origin | USA |
