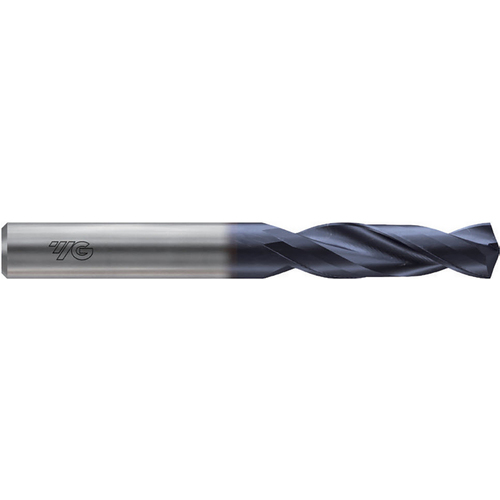

SC Drill; 13 mm Dia. × 13 mm Shank Dia. × 102 mm OAL × 51 mm LCF ; 140 Degrees ; 3XD ; TiAIN ; Series DB301
SC Drill; 13 mm Dia. × 13 mm Shank Dia. × 102 mm OAL × 51 mm LCF ; 140 Degrees ; 3xD ; Spiral Flute ; TiAIN ; Series DB301
| Drill Bit Size / Cutting Diameter (DC) | 13 mm | Shank Standard | DIN 6539 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.5118″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5118″ | Tool Type | General Purpose |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13 mm | Flute Type | Spiral |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | TiAIN | Series/List # | DB301 |
| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 51 mm |
| Connection Diameter Machine Side (DCONMS) | 13 mm | Length Chip Flute (LCF) | 51 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 102 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 102 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Straight-Cylindrical | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.999
