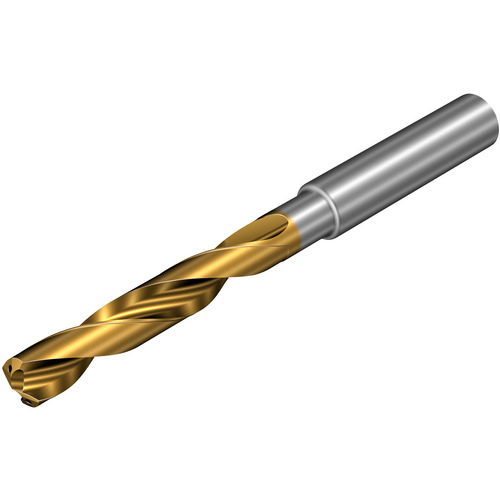

860.1-0317-021A1-PMP1BM
SC Drill; 3.17 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 147 Degrees ; 5xD ; | TiAlSiN | TiSiN | ; Series CoroDrill 860
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 3.17 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.17 mm | Shank Standard | DIN 6535 HA | DIN 6537 L |
| Length Group | 5xD | Cutting Edge Material | Carbide |
| Coating | | TiAlSiN | TiSiN | | Tool Type | Solid Carbide Drills |
| Applicable Material | | Steel | | Grade | P1BM |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Internal | Series/List # | CoroDrill 860 |
| Point Angle (SIG) | 147 Degrees | Usable Length (LU) | 16.4 mm |
| Point Length (PL) | 0.469 mm | Length Chip Flute (LCF) | 28 mm |
| Functional Length (LF) | 65.5 mm | Overall Length (OAL) | 66 mm |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.026
