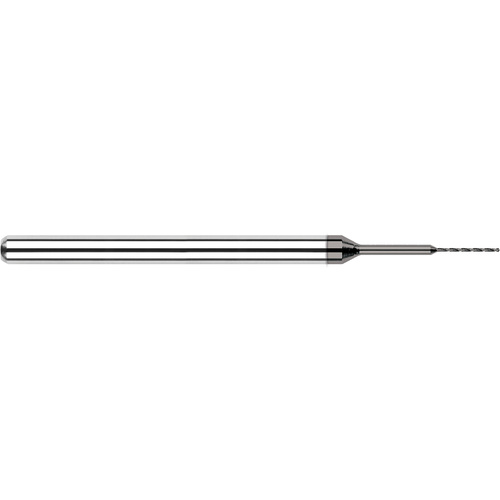

Solid Carbide Drill; 0.0145″ Dia. × 1/8″ Shank Dia. × 1-1/2″ OAL × 0.27″ LCF ; 130 Degrees ; Helical Flute
SC Drill; 0.0145″ Dia. × 1/8″ Shank Dia. × 1-1/2″ OAL × 0.27″ LCF ; 130 Degrees ; Helical Flute
| Drill Bit Size / Cutting Diameter (DC) | 0.0145″ | Flute Type | Helical |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.0145″ | Point Shape | Standard |
| Applicable Material | | Hard Materials | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.27″ |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 0.27″ |
| Functional Length (LF) | 0.27″ | Overall Length (OAL) | 1-1/2″ |
| Number of Teeth | 2 | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shape | Miniature | Body Material | Carbide |
| Cutting Edge Material | Carbide | Single / Double End | Single End |
| Tool Type | Miniature |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.02
