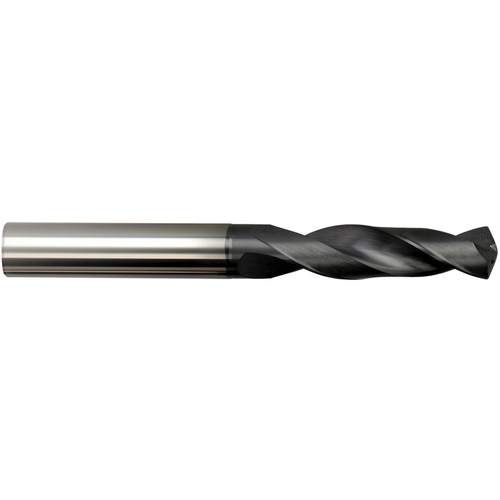

19015 - 4.5 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 24 mm LOC, 140 Degrees, 3xD, 2 Flute, Altima, Solid Carbide Drill
SC Drill; 4.5 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 24 mm LCF ; 140 Degrees ; 3xD ; AlTiN
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Tool Type | Solid Carbide Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | AlTiN | Usable Length (LU) | 18 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 66 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 24 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
