19485 CDACRM0560 GEM PLUS

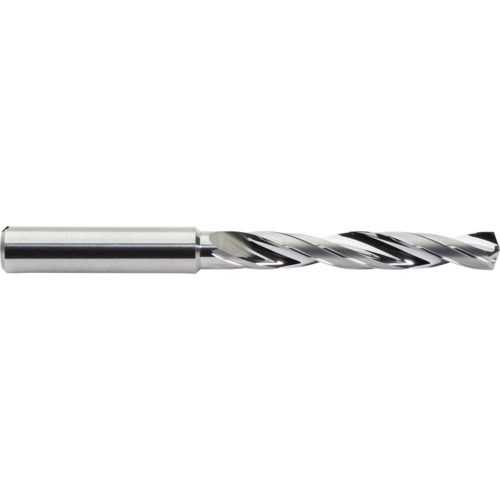

SC Drill; 5.6 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 140 Degrees-142 Degrees ; 5xD ; DLC
| Drill Bit Size / Cutting Diameter (DC) | 5.6 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.6 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | DLC | Usable Length (LU) | 35 mm |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 44 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 82 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees-142 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.039
