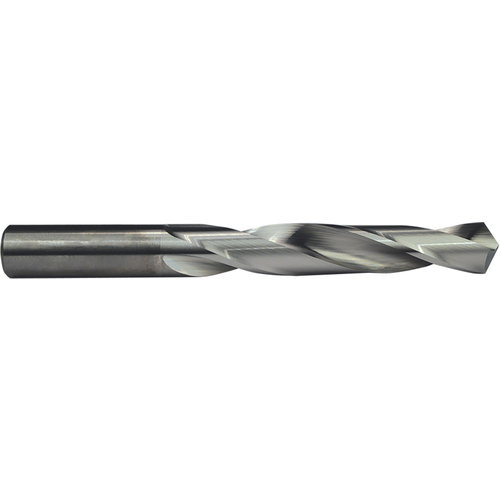

03736 ALTIMA DRL 11.2MM
SC Drill; 11.2 mm Dia. × 11.2 mm Shank Dia. × 142 mm OAL × 94 mm LCF ; 118 Degrees ; 5xD ; AlTiN
| Drill Bit Size / Cutting Diameter (DC) | 11.2 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.2 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | AlTiN | Usable Length (LU) | 70 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 94 mm |
| Connection Diameter Machine Side (DCONMS) | 11.2 mm | Overall Length (OAL) | 142 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.302
