19419 20402400 ALTIMA

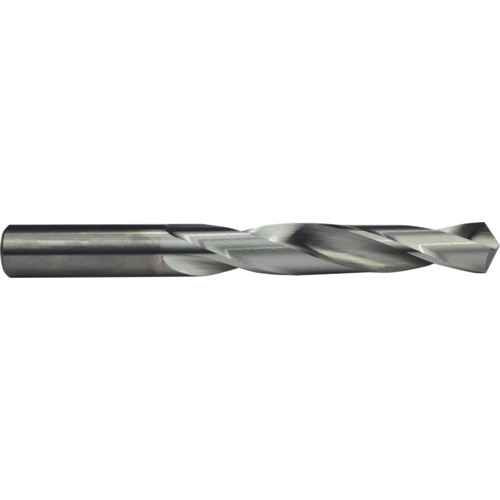

SC Drill; #73 Dia. × 0.024″ Shank Dia. × 1-1/2″ OAL × 1/4″ LCF ; 118 Degrees ; 5xD ; AlTiN
| Drill Bit Size / Cutting Diameter (DC) | #73 | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #73 | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Wire Gauge |
| Coating | AlTiN | Usable Length (LU) | 3/16″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 0.024″ | Overall Length (OAL) | 1-1/2″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.001
