18671 20059380 ALTIMA

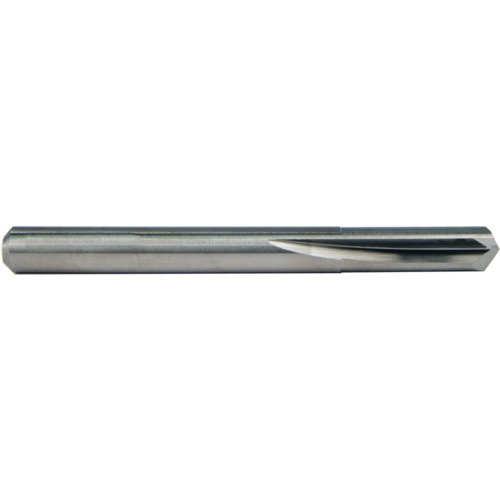

SC Drill; 19/32″ Dia. × 19/32″ Shank Dia. × 3-1/2″ OAL × 1-1/4″ LCF ; 135 Degrees ; 3xD ; AlTiN
| Drill Bit Size / Cutting Diameter (DC) | 19/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 19/32″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.5938″ | Measurement Type | Inch |
| Length Group | 3xD | Usable Length (LU) | 3/32″ |
| Coating | AlTiN | Length Chip Flute (LCF) | 1-1/4″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 3-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 19/32″ | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 135 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.418
