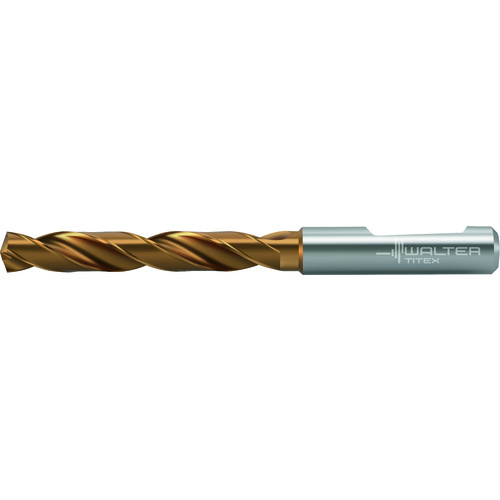

DC160-05-08.300F0-WJ30ET
SC Drill; 8.3 mm Dia. × 10 mm Shank Dia. × 40 mm OAL ; 140 Degrees ; 5xD ; Spiral Flute ; | TiAlN | TiSiAlCrN |
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 8.3 mm | Functional Length (LF) | 61 mm |
| Decimal Equivalent | 0.3268″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.3 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Flute Type | Spiral |
| Coating | | TiAlN | TiSiAlCrN | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Overall Length (OAL) | 40 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.011
