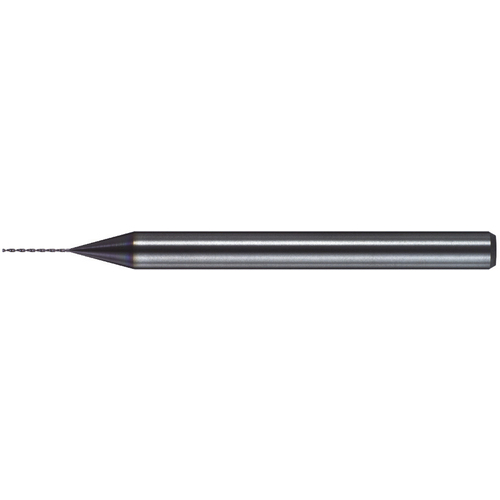

MSE0032SB VP15TF 0.32 mm Dia. × 3 mm Shank × 5.07 mm Flute Length × 38.07 mm OAL, 130°, 2 Flute, External Coolant, Solid Carbide Drill
SC Drill; 0.32 mm Dia. × 3 mm Shank Dia. × 38.07 mm OAL × 5.07 mm LCF ; 130 Degrees ; Series MSE
| Drill Bit Size / Cutting Diameter (DC) | 0.32 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.32 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | VP15TF |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Measurement Type | Metric |
| Head Length (LH) | 10.27 mm | Series/List # | MSE |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 5.07 mm |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 38.07 mm |
| Point Length (PL) | 0.07 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 38 mm | Feature | Wide flute for preventing chip jamming.,Stable, small diameter machining. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.01
