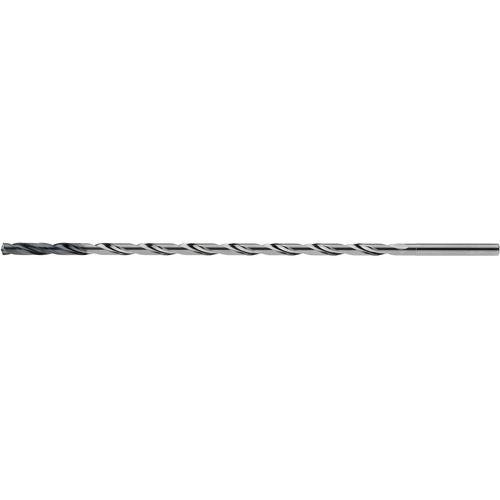

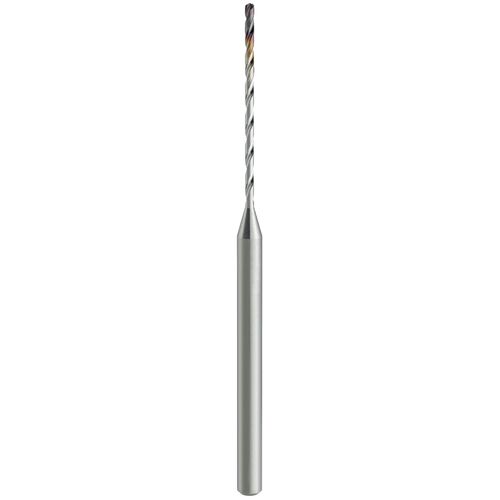

MHS0480L090B VP15TF 4.8 mm Dia. × 6 mm Shank × 89.9 mm Flute Length × 140.9 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 4.8 mm Dia. × 6 mm Shank Dia. × 140.9 mm OAL × 89.9 mm LCF ; 140 Degrees ; 16xD ; Series MHS
| Drill Bit Size / Cutting Diameter (DC) | 4.8 mm | Flute Helix Angle (FHA) | 25 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.8 mm | Cutting Edge Material | Carbide |
| Length Group | 16xD | Grade | VP15TF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MHS |
| Head Length (LH) | 90.9 mm | Usable Length (LU) | 77.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 89.9 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 140.9 mm |
| Point Length (PL) | 0.9 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 140 mm | Feature | High backling strength and unique double margin. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.15
