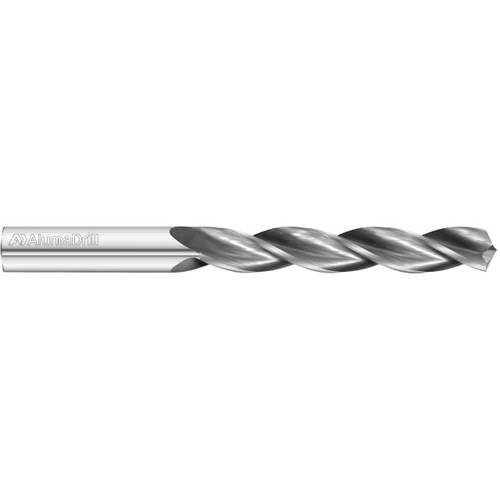

2.9 mm Dia. × 3 mm Shank × 32 mm Flute Length × 57 mm OAL, 7xD, 130°, Uncoated, 3xD Flute, External Coolant, Round Solid Carbide Drill
SC Drill; 2.9 mm Dia. × 3 mm Shank Dia. × 57 mm OAL × 32 mm LCF ; 130 Degrees ; 7xD ; Uncoated ; Series 1565
| Drill Bit Size / Cutting Diameter (DC) | 2.9 mm | Shank Type | Round |
| Decimal Equivalent | 0.1142″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.9 mm | Cutting Edge Material | Carbide |
| Length Group | 7xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Point Shape | Hi-Performance |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Series/List # | 1565 |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 32 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 57 mm |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
.010
