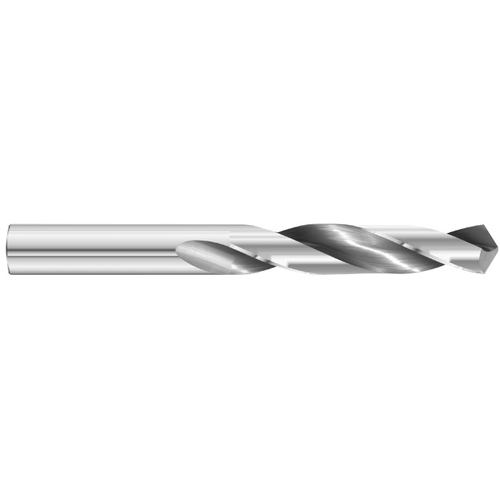

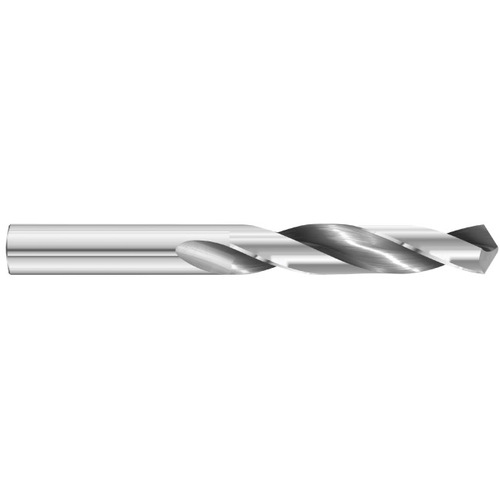

#55 Dia. × 0.052″ Shank × 3/4″ Flute Length × 1-1/2″ OAL, 7xD, 118°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill
SC Drill; #55 Dia. × 0.052″ Shank Dia. × 1-1/2″ OAL × 3/4″ LCF ; 118 Degrees ; 7xD ; Uncoated ; Series 1510
| Drill Bit Size / Cutting Diameter (DC) | #55 | Shank Type | Round |
| Decimal Equivalent | 0.052″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #55 | Cutting Edge Material | Carbide |
| Length Group | 7xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Point Shape | 4 Facet |
| Connection Diameter Machine Side (DCONMS) | 0.052″ | Measurement Type | Wire Gauge |
| Coolant Supply Property (CSP) | External | Series/List # | 1510 |
| Point Angle (SIG) | 118 Degrees | Length Chip Flute (LCF) | 3/4″ |
| Flute Helix Angle (FHA) | 25 Degrees | Overall Length (OAL) | 1-1/2″ |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.006
