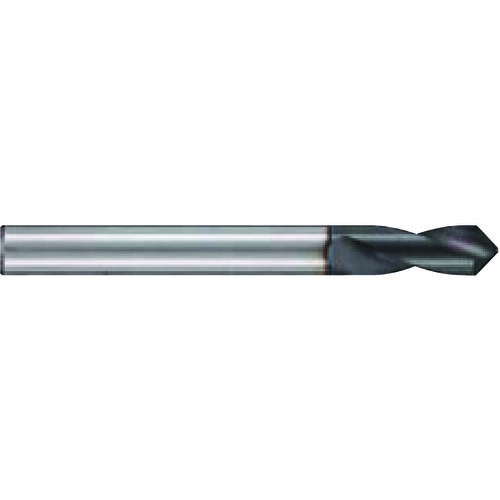

20 mm Dia. × 2.7 mm Shank × 90 mm Flute Length × 145 mm OAL, 2xD, 180°, Aqua EX, 2 Flute, External, Round Solid Carbide Drill
SC Drill; 20 mm Dia. × 2.7 mm Shank Dia. × 145 mm OAL × 90 mm LCF ; 180 Degrees ; 2xD ; Spiral Flute ; Series L9610
| Drill Bit Size / Cutting Diameter (DC) | 20 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.7874″ | Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 20 mm | Point Shape | Square End |
| Length Group | 2xD | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | | Series/List # | L9610 |
| Connection Diameter Machine Side (DCONMS) | 2.7 mm | Usable Length (LU) | 93 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 90 mm |
| Point Angle (SIG) | 180 Degrees | Overall Length (OAL) | 145 mm |
| Flute Helix Angle (FHA) | 20 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | Suitable for drilling in: Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys | Country of Origin | USA |
Shipping Info
Package Weight
0.999
