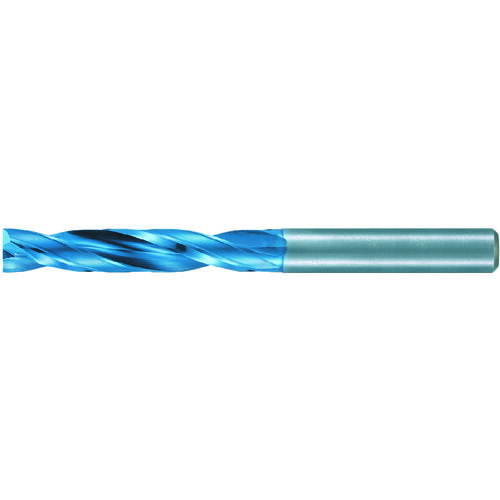

L9818 6.1MM AQUA EX FLAT
SC Drill; 6.1 mm Dia. × 6 mm Shank Dia. × 70 mm OAL × 40 mm LCF ; 180 Degrees ; 4xD ; Series L9818
| Drill Bit Size / Cutting Diameter (DC) | 6.1 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.2402″ | Point Shape | Square End |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.1 mm | Measurement Type | Metric |
| Length Group | 4xD | Series/List # | L9818 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 40 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 70 mm |
| Point Angle (SIG) | 180 Degrees | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | Suitable for drilling in: Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys | Country of Origin | USA |
Shipping Info
Package Weight
0.099
