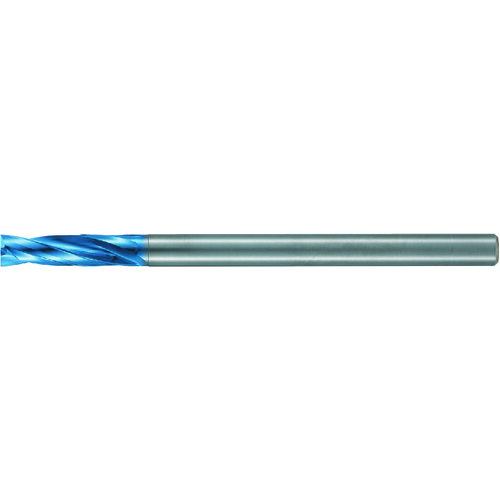

6.4 mm Dia. × 6 mm Shank × 30 mm Flute Length × 120 mm OAL, 10xD, 180°, External, Solid Carbide Drill
SC Drill; 6.4 mm Dia. × 6 mm Shank Dia. × 120 mm OAL × 30 mm LCF ; 180 Degrees ; 10xD
| Drill Bit Size / Cutting Diameter (DC) | 6.4 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.252″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.4 mm | Point Shape | Square End |
| Length Group | 10xD | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 30 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 120 mm |
| Point Angle (SIG) | 180 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | Suitable for drilling in: Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys | Country of Origin | USA |
