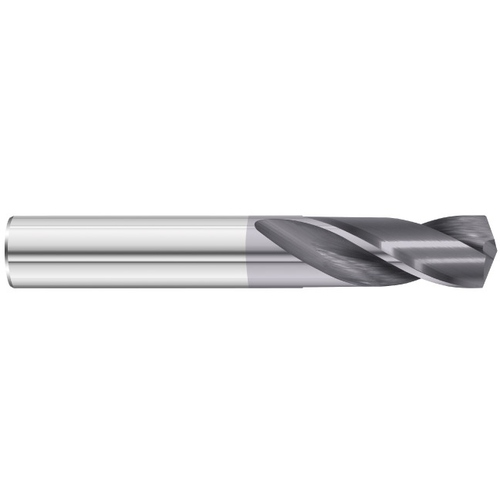

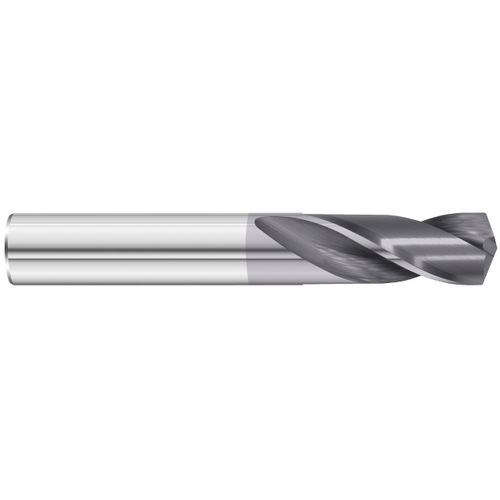

#43 Dia. × 0.089″ Shank × 1/2″ Flute Length × 2″ OAL, 5xD, 135°, TiAlN, 2xD Flute, External Coolant, Round Solid Carbide Drill

‹ ›

#43 Dia. × 0.089″ Shank × 1/2″ Flute Length × 2″ OAL, 5xD, 135°, TiAlN, 2xD Flute, External Coolant, Round Solid Carbide Drill

SC Drill; #43 Dia. × 0.089″ Shank Dia. × 2″ OAL × 1/2″ LCF ; 135 Degrees ; 5xD ; TiAlN ; Series 1500

Item # FUL 13223

Brand: Fullerton Tool

MFG #: 13223

Legacy Part #: FT8213223

Trade Name: 1500 Notched Cam Point Drill

Quantity Available

Drill Bit Size / Cutting Diameter (DC)

#43

Shank Type

Round

Decimal Equivalent

0.089″

Cutting Edge Material

Carbide

Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge

#43

Tool Type

Solid Carbide Drills

Length Group

5xD

Point Shape

Notch

Coating

TiAlN

Measurement Type

Wire Gauge

Connection Diameter Machine Side (DCONMS)

0.089″

Series/List #

1500

Coolant Supply Property (CSP)

External

Length Chip Flute (LCF)

1/2″

Point Angle (SIG)

135 Degrees

Overall Length (OAL)

2″

Flute Helix Angle (FHA)

30 Degrees

Flute Count (NOF)

Product Features

Remarks

‎

2 Flutes

30° Helix

135° Notched Cam Point

Right Hand Spiral

Standard Uncoated and FC-7 Coating

Metric and Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: +.0000″ -.0015″ / +0.000–0.038mm

Cutter Diameter Tolerance: +.0000″ -.0005″ / +0.000–0.013mm

*Items are made to order and not planned as a normal stocked item. Contact us for current stock status or for lead time at time of order. If you have an * item that you need us to stock, please contact us and we will work with you.

Country of Origin

USA

Shipping Info

Package Weight

.010
