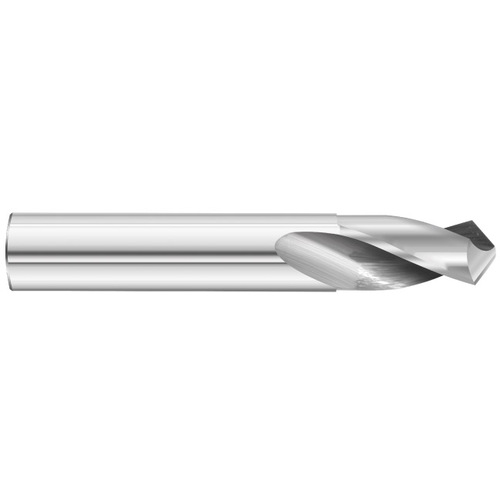

#34 Dia. × 0.111″ Shank × 5/8″ Flute Length × 2″ OAL, 5xD, 118°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill

‹ ›

#34 Dia. × 0.111″ Shank × 5/8″ Flute Length × 2″ OAL, 5xD, 118°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill

SC Drill; #34 Dia. × 0.111″ Shank Dia. × 2″ OAL × 5/8″ LCF ; 118 Degrees ; 5xD ; Uncoated ; Series 1510

Item # FUL 16035

Brand: Fullerton Tool

MFG #: 16035

Legacy Part #: FT8216035

Trade Name: 1510 4-Facet Point Drill

Quantity Available

Drill Bit Size / Cutting Diameter (DC)

#34

Shank Type

Round

Decimal Equivalent

0.111″

Cutting Edge Material

Carbide

Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge

#34

Tool Type

Solid Carbide Drills

Length Group

5xD

Point Shape

4 Facet

Coating

Uncoated

Measurement Type

Wire Gauge

Connection Diameter Machine Side (DCONMS)

0.111″

Series/List #

1510

Coolant Supply Property (CSP)

External

Length Chip Flute (LCF)

5/8″

Point Angle (SIG)

118 Degrees

Overall Length (OAL)

2″

Flute Helix Angle (FHA)

25 Degrees

Flute Count (NOF)

Product Features

Remarks

‎

2 Flute

25 Degree Helix

118 Degree Four Facet Point

Right Hand Spiral

Right Hand Cut

Dura Carb (Micrograin)

Shank Diameter Tolerance: +.0000″ -.0015″ / +0.000–0.038mm

Cutter Diameter Tolerance: +.0000 -.0005″ / +0.000–0.013mm

Country of Origin

USA

Shipping Info

Package Weight

.015
