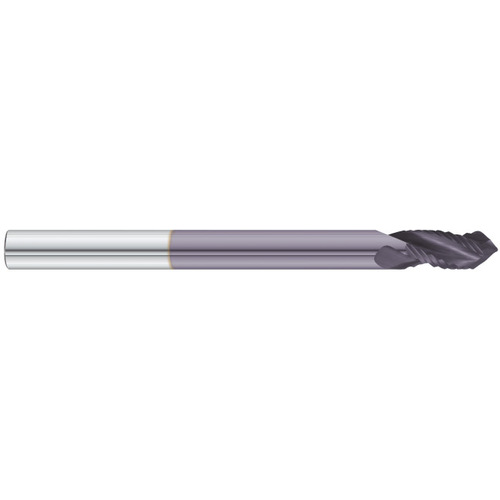

7.5 mm Dia. × 70.5 mm Shank × 38 mm Flute Length × 110 mm OAL, 5xD, 90°, TiAlN, 3xD Flute, External Coolant, Round Solid Carbide Drill
SC Drill; 7.5 mm Dia. × 70.5 mm Shank Dia. × 110 mm OAL × 38 mm LCF ; 90 Degrees ; 5xD ; TiAlN ; Series 1566
| Drill Bit Size / Cutting Diameter (DC) | 7.5 mm | Shank Type | Round |
| Decimal Equivalent | 0.2953″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.5 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Point Shape | Notch |
| Coating | TiAlN | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 70.5 mm | Series/List # | 1566 |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 38 mm |
| Point Angle (SIG) | 90 Degrees | Overall Length (OAL) | 110 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
.135
