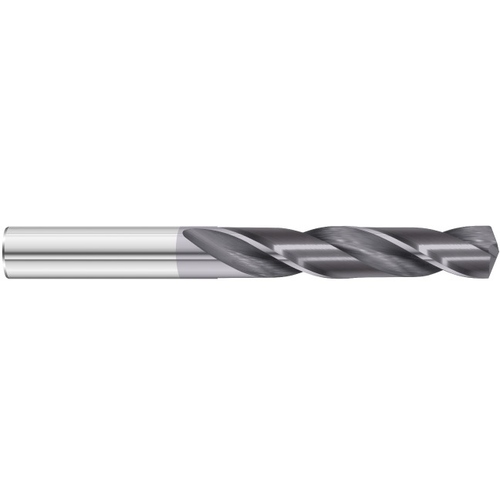

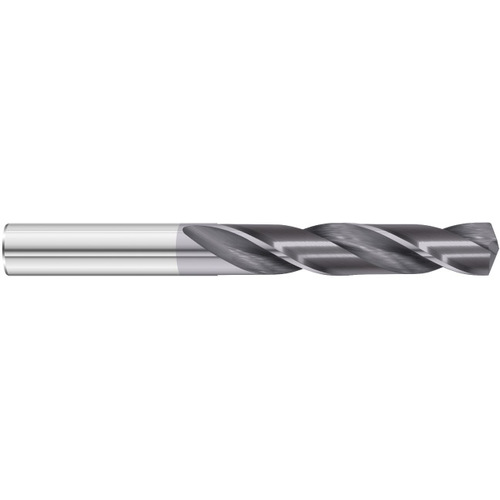

‎Z Dia. x 0.413″ Shank × 2-7/8″ Flute Length × 4-1/2″ OAL, 7xD, 135°, FC7, 2xD Flute, External Coolant, Round Solid Carbide Drill

‹ ›

‎Z Dia. x 0.413″ Shank × 2-7/8″ Flute Length × 4-1/2″ OAL, 7xD, 135°, FC7, 2xD Flute, External Coolant, Round Solid Carbide Drill

‎SC Drill; Z Dia. x 0.413″ Shank Dia. × 4-1/2″ OAL × 2-7/8″ LCF ; 135 Degrees ; 7xD ; Series 1500

Item # FUL 13138

Brand: Fullerton Tool

MFG #: 13138

Legacy Part #: FT8213138

Trade Name: 1500 Notched Cam Point Drill

Quantity Available

Drill Bit Size / Cutting Diameter (DC)

Shape

Solid Carbide

Decimal Equivalent

0.413″

Cutting Edge Material

Carbide

Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge

Tool Type

Solid Carbide Drills

Length Group

7xD

Point Shape

Notch

Connection Diameter Machine Side (DCONMS)

0.413″

Measurement Type

Letter

Coolant Supply Property (CSP)

External

Series/List #

1500

Point Angle (SIG)

135 Degrees

Length Chip Flute (LCF)

‎2-7/8″

Flute Helix Angle (FHA)

30 Degrees

Overall Length (OAL)

‎4-1/2″

Shank Type

Round

Product Features

Remarks

‎

2 Flutes

30° Helix

135° Notched Cam Point

Right Hand Spiral

Standard Uncoated and FC-7 Coating

Metric and Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: +.0000″ -.0015″ / +0.000–0.038mm

Cutter Diameter Tolerance: +.0000″ -.0005″ / +0.000–0.013mm

*Items are made to order and not planned as a normal stocked item. Contact us for current stock status or for lead time at time of order. If you have an * item that you need us to stock, please contact us and we will work with you.

Country of Origin

USA

Shipping Info

Package Weight

0.225
