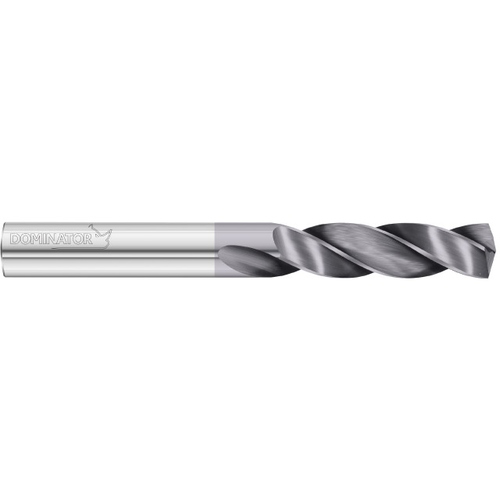

#7 Dia. × 1/4″ Shank × 1-1/2″ Flute Length × 3″ OAL, 5xD, 144°, FC7, 2xD Flute, External Coolant, Round Solid Carbide Drill
SC Drill; #7 Dia. × 1/4″ Shank Dia. × 3″ OAL × 1-1/2″ LCF ; 144 Degrees ; 5xD ; Series 1505
| Drill Bit Size / Cutting Diameter (DC) | #7 | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.201″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #7 | Point Shape | Notch |
| Length Group | 5xD | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Series/List # | 1505 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 1.12″ |
| Point Angle (SIG) | 144 Degrees | Length Chip Flute (LCF) | 1-1/2″ |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 3″ |
| Shank Type | Round | Flute Count (NOF) | 2 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.055
