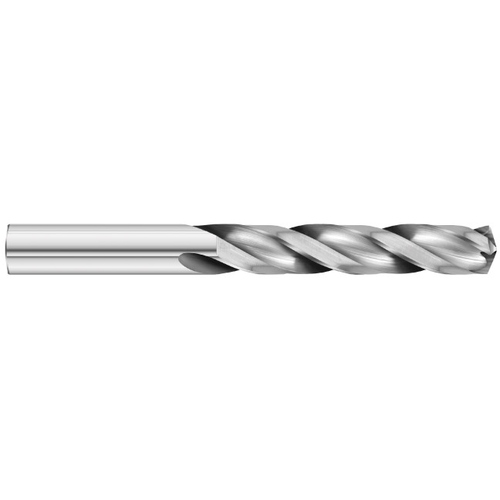

15/64″ Dia. × 15/64″ Shank × 2″ Flute Length × 3-1/4″ OAL, 7xD, 150°, Uncoated, 3xD Flute, External Coolant, Round Solid Carbide Drill
SC Drill; 15/64″ Dia. × 15/64″ Shank Dia. × 3-1/4″ OAL × 2″ LCF ; 150 Degrees ; 7xD ; Uncoated ; Series 1540
| Drill Bit Size / Cutting Diameter (DC) | 15/64″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/64″ | Shape | Solid Carbide |
| Decimal Equivalent | 0.2344″ | Cutting Edge Material | Carbide |
| Length Group | 7xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Point Shape | Thinned |
| Connection Diameter Machine Side (DCONMS) | 15/64″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External | Series/List # | 1540 |
| Point Angle (SIG) | 150 Degrees | Length Chip Flute (LCF) | 2″ |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 3-1/4″ |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.057
