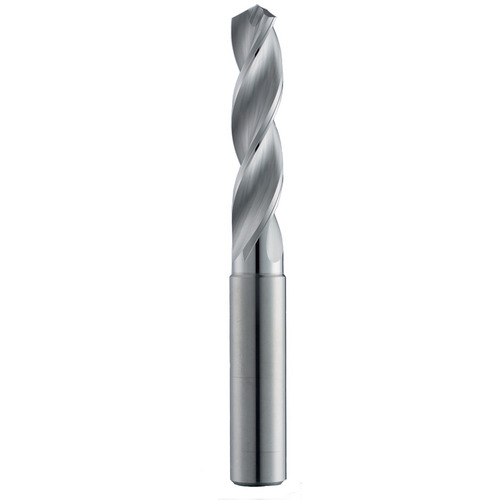

7.7 mm Dia. × 8 mm Shank × 53 mm Flute Length × 91 mm OAL, 5xD, 124°, Uncoated, 3 Flute, External, Round Solid Carbide Drill
SC Drill; 7.7 mm Dia. × 8 mm Shank Dia. × 91 mm OAL × 53 mm LCF ; 124 Degrees ; 5xD ; Spiral Flute ; Uncoated ; Series 131N
| Drill Bit Size / Cutting Diameter (DC) | 7.7 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3031″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.7 mm | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | Uncoated | Series/List # | 131N |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 43 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 53 mm |
| Point Angle (SIG) | 124 Degrees | Overall Length (OAL) | 91 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
