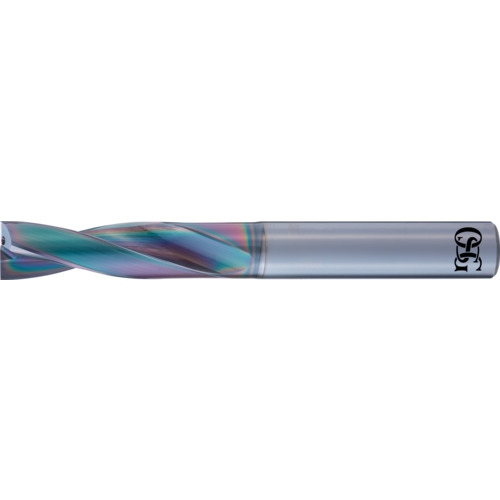

7/32″ Dia. × 1/4″ Shank × 27 mm Flute Length × 65 mm OAL, 3xD, EgiAs, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 7/32″ Dia. × 1/4″ Shank Dia. × 65 mm OAL × 27 mm LCF ; 0 Degrees ; 3xD ; EgiAs ; Series 5720
| Drill Bit Size / Cutting Diameter (DC) | 7/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/32″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.2188″ | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | 5720 |
| Coating | EgiAs | Usable Length (LU) | 27 mm |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 27 mm |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Overall Length (OAL) | 65 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 27 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.035
