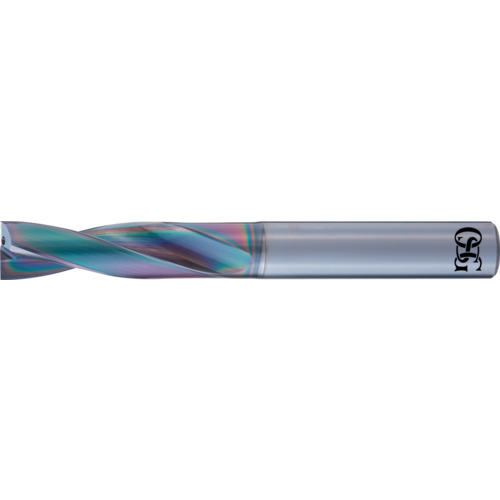

3/16″ ADFO-3D
SC Drill; 3/16″ Dia. × 3/16″ Shank Dia. × 65 mm OAL × 24 mm LCF ; 0 Degrees ; 3xD ; EgiAs ; Series 5720
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.1875″ | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | 5720 |
| Coating | EgiAs | Usable Length (LU) | 24 mm |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Overall Length (OAL) | 65 mm |
| Coolant Supply Property (CSP) | Internal | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 24 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.035
