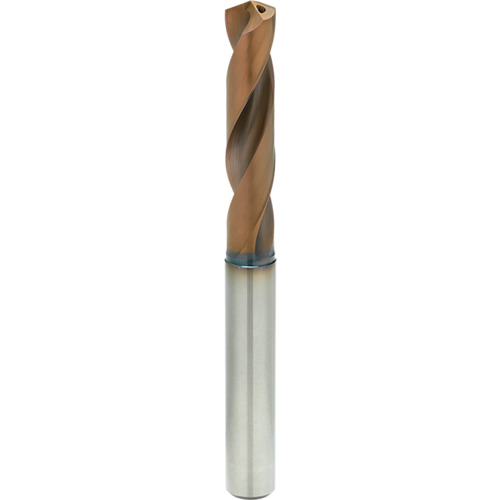

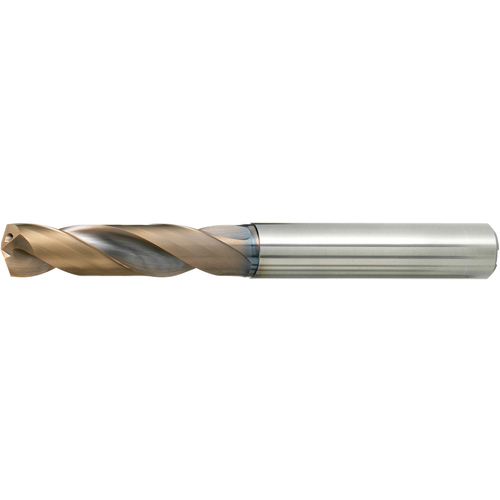

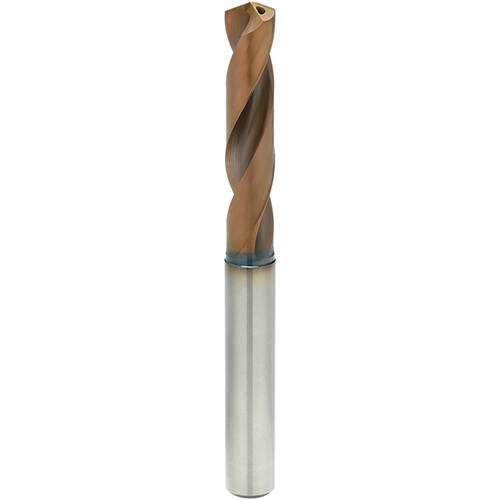

DSAS0953X03S100CARB DRL
SC Drill; 9.525 mm Dia. × 10 mm Shank Dia. × 102.8 mm OAL × 49.8 mm LCF ; 140 Degrees ; 3xD ; Series DSAS
| Drill Bit Size / Cutting Diameter (DC) | 9.525 mm | Flute Helix Angle (FHA) | 28 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.525 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Grade | DP9020 |
| Applicable Material | | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Series/List # | DSAS |
| Head Length (LH) | 50.8 mm | Usable Length (LU) | 30.4 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 49.8 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 102.8 mm |
| Point Length (PL) | 1.8 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 101 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.99
