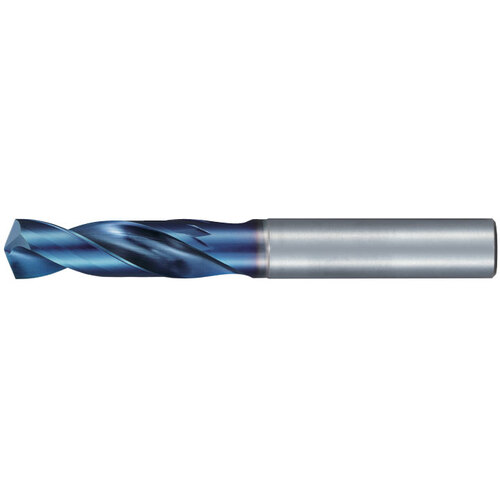

3.3 mm Dia. × 4 mm Shank × 20 mm Flute Length × 55 mm OAL, Stub, 135°, Aqua Revo D, 2 Flute, External, Solid Carbide Drill
SC Drill; 3.3 mm Dia. × 4 mm Shank Dia. × 55 mm OAL × 20 mm LCF ; 135 Degrees ; Stub ; Aqua Revo D ; Series L9860
| Drill Bit Size / Cutting Diameter (DC) | 3.3 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1299″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.3 mm | Measurement Type | Metric |
| Length Group | Stub | Series/List # | L9860 |
| Coating | Aqua Revo D | Usable Length (LU) | 20 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Length Chip Flute (LCF) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Overall Length (OAL) | 55 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 24-30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
