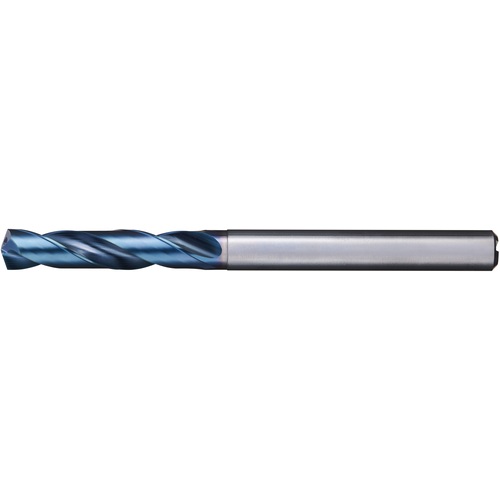

5.7 mm Dia. × 6 mm Shank × 28 mm Flute Length × 66 mm OAL, 3XD, 140°, Aqua Revo D, 2 Flute, Internal, Solid Carbide Drill
SC Drill; 5.7 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 3xD ; Series L9872
| Drill Bit Size / Cutting Diameter (DC) | 5.7 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2244″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.7 mm | Measurement Type | Metric |
| Length Group | 3xD | Series/List # | L9872 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 28 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 24-30 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
