L9863 1/4 JL REVO DRL

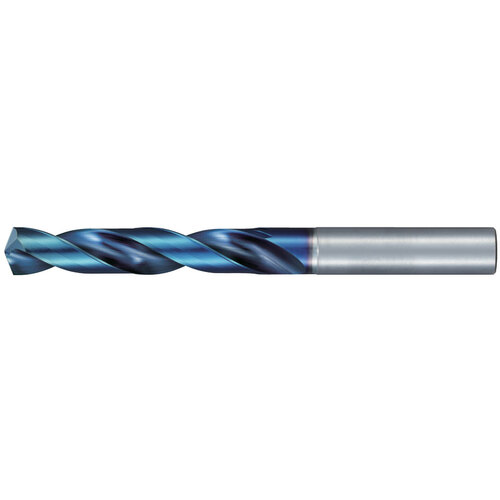

SC Drill; 1/4″ Dia. × 8 mm Shank Dia. × 84 mm OAL × 43 mm LCF ; 135 Degrees ; Jobber ; Series L9863
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.25″ | Measurement Type | Inch |
| Length Group | Jobber | Series/List # | L9863 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 43 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 43 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 84 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 24-30 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
