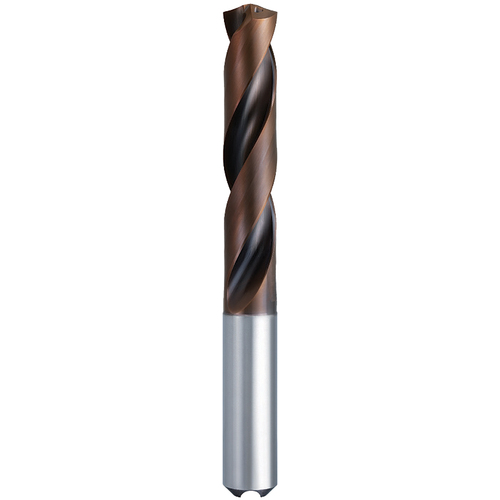

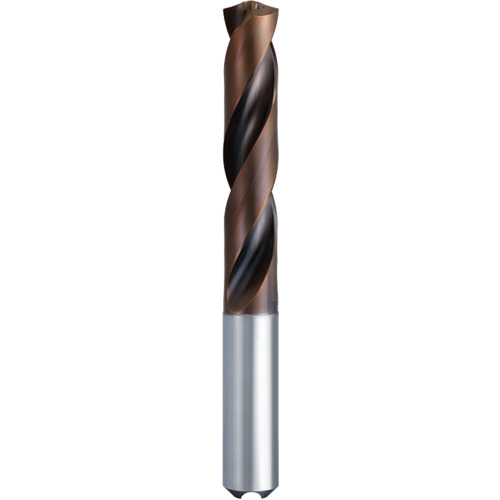

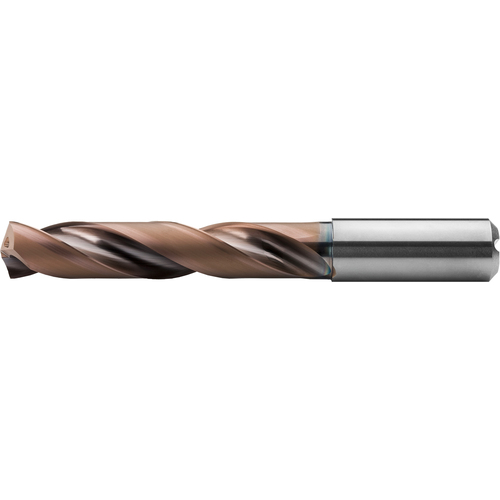

MMS0460X5DB DP7020 4.6 mm Dia. × 6 mm Shank × 35.8 mm Flute Length × 85.8 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
SC Drill; 4.6 mm Dia. × 6 mm Shank Dia. × 85.8 mm OAL × 35.8 mm LCF ; 140 Degrees ; 5xD ; Series MMS
| Drill Bit Size / Cutting Diameter (DC) | 4.6 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.6 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Grade | DP7020 |
| Applicable Material | | Cast Iron | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MMS |
| Head Length (LH) | 38.8 mm | Usable Length (LU) | 23.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 35.8 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 85.8 mm |
| Point Length (PL) | 0.8 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 85 mm | Feature | New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.,Long drill life and high efficiency drilling of holes in stainless steel. |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.15
