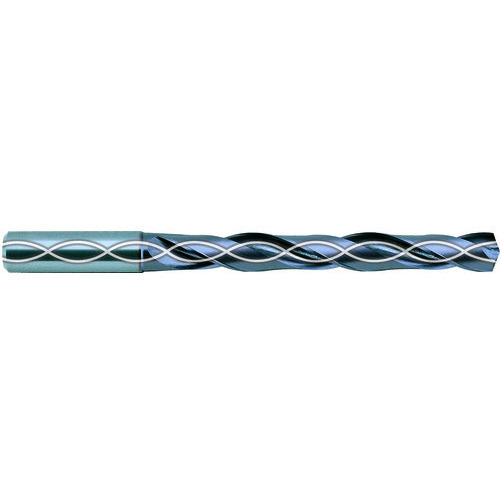

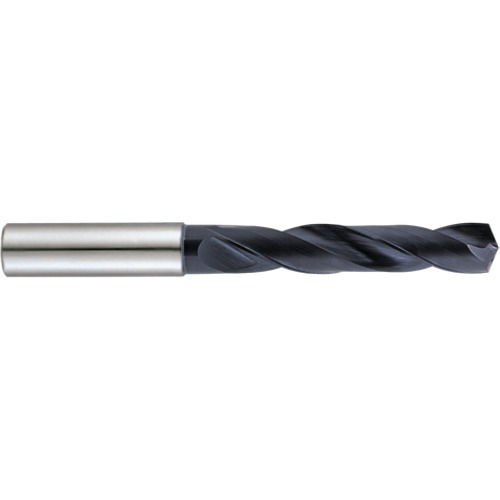

SC Drill; 13.5 mm Dia. × 14 mm Shank Dia. × 124 mm OAL × 77 mm LCF ; 140 Degrees ; 5xD ; TiAlN ; Series DH424
SC Drill; 13.5 mm Dia. × 14 mm Shank Dia. × 124 mm OAL × 77 mm LCF ; 140 Degrees ; 5xD ; TiAlN ; Series DH424
| Drill Bit Size / Cutting Diameter (DC) | 13.5 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.5315″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5315″ | Tool Type | Carbide Dream Drill - 5xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.5 mm | Measurement Type | Metric |
| Length Group | 5xD | Series/List # | DH424 |
| Coating | TiAlN | Usable Length (LU) | 77 mm |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 77 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Overall Length (OAL) | 124 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0967″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.75
Package Width
1
Package Height
1
Package Weight
0.462
