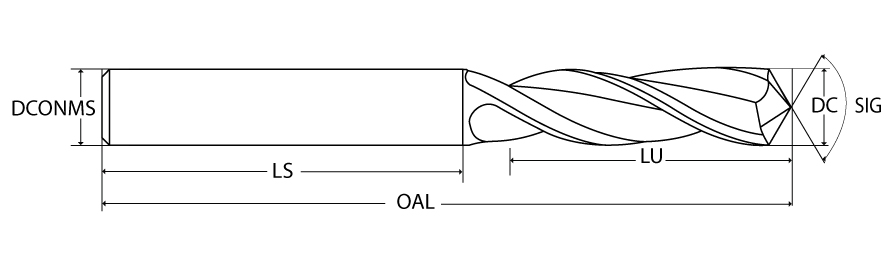

DC 0.6094″ x DCONMS 5/8″ x LCF 3-1/2″ x OAL 6″, 5xD, SIG 135°

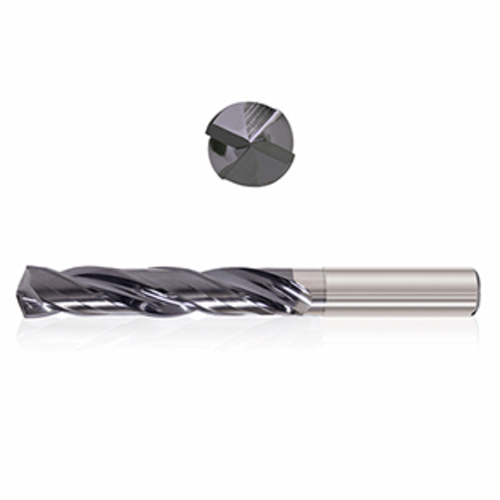

SC Drill; 0.6094″ Dia. × 5/8″ Shank Dia. × 6″ OAL × 3-1/2″ LCF ; 135 Degrees ; 5xD ; Helical Flute ; TiAICN ; Series SX
| Drill Bit Size / Cutting Diameter (DC) | 0.6094″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.6094″ | Shape | Jobber Drill |
| Decimal Equivalent | 0.6094″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.48 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Flute Type | Helical |
| Coating | TiAICN | Grade | A5009 Varianta Supral |
| Applicable Material | | Hi Temp Alloys | Stainless Steel | Steel | | Measurement Type | Inch |
| Application | | Drilling | | Series/List # | SX |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 2.5859″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 3-1/2″ |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 6″ |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | SINGLE-MARGIN DRILL |
| Shank Length (LS) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 135° Point, Single Margin, Non Coolant Through Sspiral-fluted, right-hand cut Ideal for General Purpose Drilling | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.65
