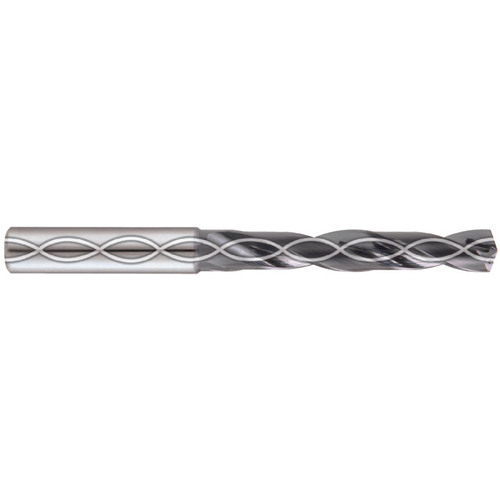

SC Drill; 7.5 mm Dia. × 8 mm Shank Dia. × 79 mm OAL × 41 mm LCF ; 140 Degrees ; 3xD ; TiAIN ; Series DH451
SC Drill; 7.5 mm Dia. × 8 mm Shank Dia. × 79 mm OAL × 41 mm LCF ; 140 Degrees ; 3xD ; TiAIN ; Series DH451
| Drill Bit Size / Cutting Diameter (DC) | 7.5 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2953″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2953″ | Tool Type | Dream Drills INOX with coolant holes |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.5 mm | Measurement Type | Metric |
| Length Group | 3xD | Series/List # | DH451 |
| Coating | TiAIN | Usable Length (LU) | 41 mm |
| Applicable Material | | Steel | Stainless Steel | | Length Chip Flute (LCF) | 41 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 79 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 1.365 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.375
Package Width
0.625
Package Height
0.625
Package Weight
0
