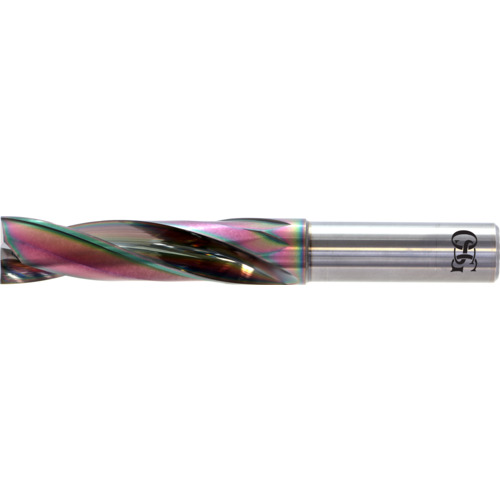

13/32″ Dia. × 7/16″ Shank × 46 mm Flute Length × 90 mm OAL, 2xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 13/32″ Dia. × 7/16″ Shank Dia. × 90 mm OAL × 46 mm LCF ; 140 Degrees ; 2xD ; EgiAs ; Series 5700
| Drill Bit Size / Cutting Diameter (DC) | 13/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/32″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.4063″ | Measurement Type | Inch |
| Length Group | 2xD | Series/List # | 5700 |
| Coating | EgiAs | Usable Length (LU) | 46 mm |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 46 mm |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Overall Length (OAL) | 90 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 46 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.05000
Package Width
.85000
Package Height
.75000
Package Weight
0.19
