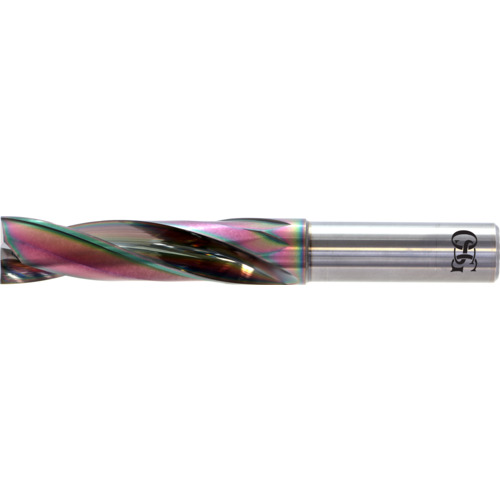

5/32″ Dia. × 3/16″ Shank × 19 mm Flute Length × 60 mm OAL, 2xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 5/32″ Dia. × 3/16″ Shank Dia. × 60 mm OAL × 19 mm LCF ; 140 Degrees ; 2xD ; EgiAs ; Series 5700
| Drill Bit Size / Cutting Diameter (DC) | 5/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/32″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.1563″ | Measurement Type | Inch |
| Length Group | 2xD | Series/List # | 5700 |
| Coating | EgiAs | Usable Length (LU) | 19 mm |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 19 mm |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Overall Length (OAL) | 60 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 19 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.55000
Package Width
.55000
Package Height
.45000
Package Weight
0.03
