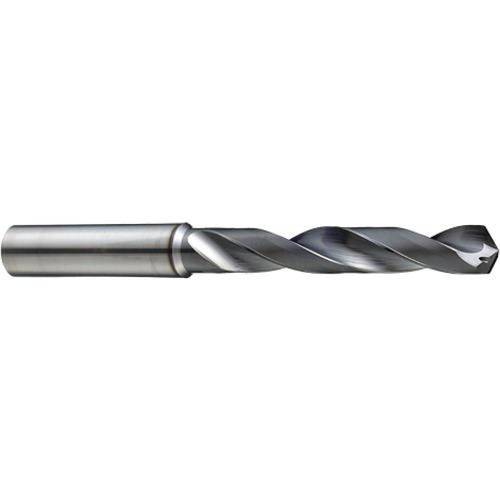

4.8MM 5XD DREAM W/CLNT
SC Drill; 4.8 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 118 Degrees ; 5xD ; DLC ; Series DGE433
| Drill Bit Size / Cutting Diameter (DC) | 4.8 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.189″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.189″ | Tool Type | Carbide Dream Drill For Aluminum W/ Coolant (5xD) |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.8 mm | Measurement Type | Metric |
| Length Group | 5xD | Series/List # | DGE433 |
| Coating | DLC | Usable Length (LU) | 44 mm |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 44 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 82 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 1.44 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.5
Package Width
0.625
Package Height
0.625
Package Weight
0.5
