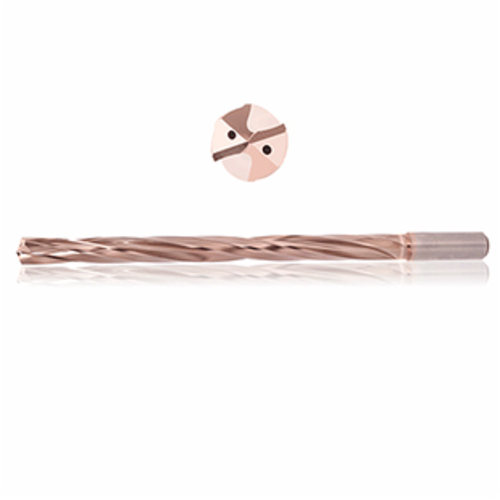

0.2165 mm Dia. × 6 mm Shank × 140 mm Flute Length × 185 mm OAL, 20xD, 135°, ZircoPlus, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
SC Drill; 0.2165 mm Dia. × 6 mm Shank Dia. × 185 mm OAL × 140 mm LCF ; 135 Degrees ; 20xD ; Helical Flute ; ZircoPlus ; Series AXC
| Drill Bit Size / Cutting Diameter (DC) | 5.5 mm | Shank Standard | h6 |
| Decimal Equivalent | 0.0085″ | Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.5 mm | Cutting Edge Material | Carbide |
| Length Group | 20xD | Tool Type | Solid Carbide Drill |
| Coating | ZrCN | Flute Type | Helical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | H5010 ZircoPlus |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 131.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 140 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 185 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | TRIPLE-MARGIN DRILL |
| Shank Length (LS) | 45 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 135° Point, Triple Margin, High Performance, Coolant ThroughFor Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
