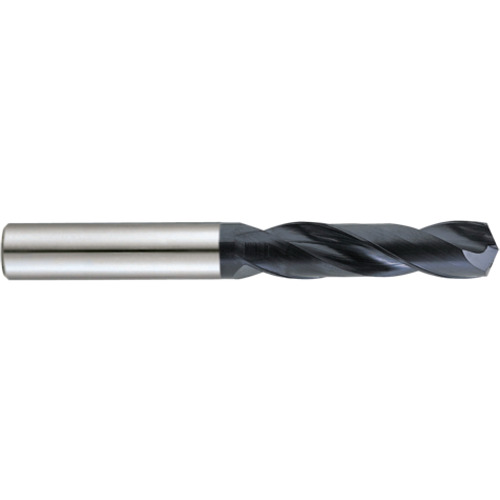

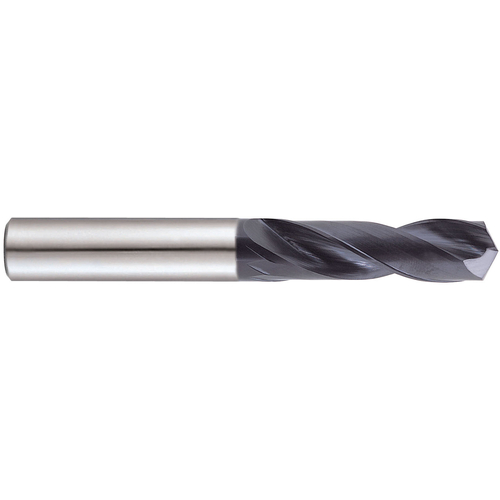

6.4MM CARBIDE 3XD DREAM
SC Drill; 6.4 mm Dia. × 6.4 mm Shank Dia. × 70 mm OAL × 31 mm LCF ; 140 Degrees ; 3xD ; TiAlN ; Series DH404
| Drill Bit Size / Cutting Diameter (DC) | 6.4 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.252″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.252″ | Tool Type | Carbide Dream Drill - 3xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.4 mm | Measurement Type | Metric |
| Length Group | 3xD | Series/List # | DH404 |
| Coating | TiAlN | Usable Length (LU) | 31 mm |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 31 mm |
| Connection Diameter Machine Side (DCONMS) | 6.4 mm | Overall Length (OAL) | 70 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0459″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3
Package Width
0.625
Package Height
0.625
Package Weight
0.064
