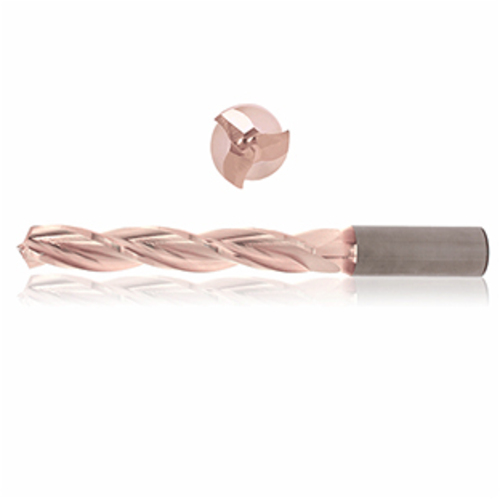

.1065 × 1/8 × 1-1/4 × 3
SC Drill; 0.1065″ Dia. × 1/8″ Shank Dia. × 3″ OAL × 1-1/4″ LCF ; 130 Degrees ; 5xD ; Helical Flute ; ZrCN ; Series CX

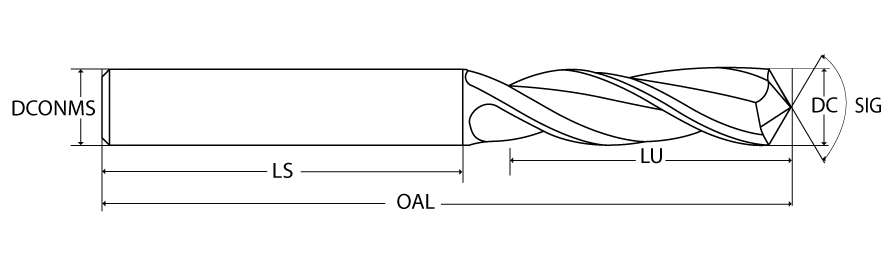

| Drill Bit Size / Cutting Diameter (DC) | 0.1065″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1065″ | Shape | Jobber Drill |
| Decimal Equivalent | 0.1065″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.71 mm | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #36 | Flute Type | Helical |
| Length Group | 5xD | Grade | A5010 ZircoPlus |
| Coating | ZrCN | Measurement Type | Inch |
| Applicable Material | | Aluminum | Non Ferrous Metals | Cast Iron | | Series/List # | CX |
| Application | | Drilling | | Usable Length (LU) | 1.0903″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Chip Flute (LCF) | 1-1/4″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3″ |
| Point Angle (SIG) | 130 Degrees | Flute Count (NOF) | 3 |
| Flute Helix Angle (FHA) | 30 Degrees | Feature | SINGLE-MARGIN DRILL |
| Number of Teeth | 3 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 1-3/4″ | Body Material | Carbide |
| Shank Type | Round |
Product Features
| Family Description | 130° Self Centering Point, Single Margin, Non Coolant Thru High Performance, for Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
