5376 33/64 ST/FL DRL SC

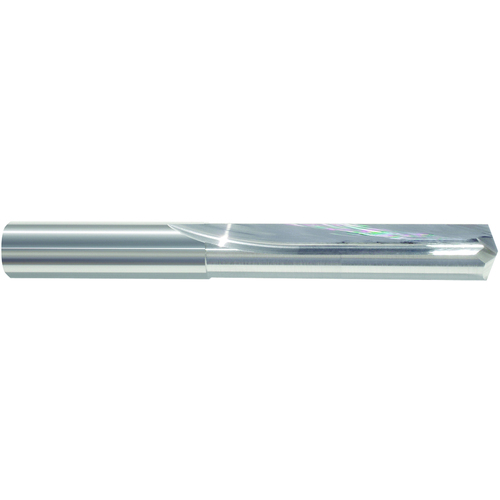

SC Drill; 33/64″ Dia. × 33/64″ Shank Dia. × 3-1/2″ OAL × 1-1/8″ LCF ; 140 Degrees ; Straight Flute ; Uncoated ; Series 5376
| Drill Bit Size / Cutting Diameter (DC) | 33/64″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 33/64″ | Point Shape | Notch |
| Decimal Equivalent | 0.5156″ | Measurement Type | Inch |
| Length Group | Straight Flute | Series/List # | 5376 |
| Coating | Uncoated | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 33/64″ | Length Chip Flute (LCF) | 1-1/8″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3-1/2″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
