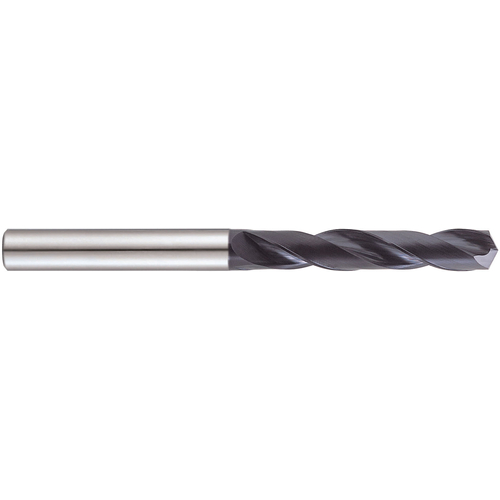

3/16 3XD DREAM CLNT HLE
SC Drill; 3/16″ Dia. × 3/16″ Shank Dia. × 2-7/16″ OAL × 1″ LCF ; 140 Degrees ; 3xD ; TiAlN ; Series DH414
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1875″ | Tool Type | Carbide Dream Drill - 3xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.763 mm | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | DH414 |
| Coating | TiAlN | Usable Length (LU) | 1″ |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Overall Length (OAL) | 2-7/16″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0341″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.75
Package Width
0.625
Package Height
0.625
Package Weight
0.05
