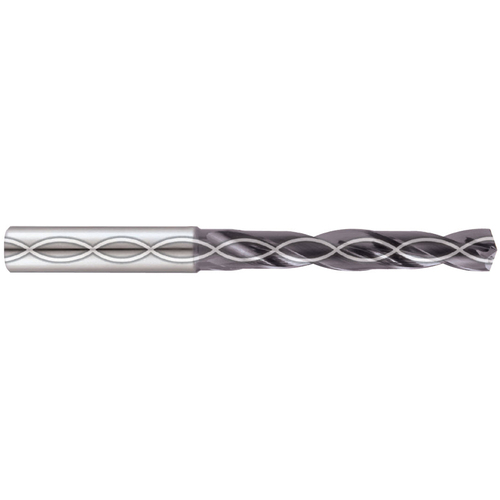

SC Drill; 1/8″ Dia. × 3/16″ Shank Dia. × 2.992″ OAL × 1.102″ LCF ; 140 Degrees ; 3xD ; TiAIN ; Series DH714
SC Drill; 1/8″ Dia. × 3/16″ Shank Dia. × 2.992″ OAL × 1.102″ LCF ; 140 Degrees ; 3xD ; TiAIN ; Series DH714
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ | Tool Type | Dream Drills INOX with coolant holes |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.175 mm | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | DH714 |
| Coating | TiAIN | Usable Length (LU) | 28 mm |
| Applicable Material | | Steel | Stainless Steel | | Length Chip Flute (LCF) | 1.102″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Overall Length (OAL) | 2.992″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0227″ | Shank Diameter Tolerance (TCDMM) | -0.0006 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.375
Package Width
0.625
Package Height
0.625
Package Weight
0.05
