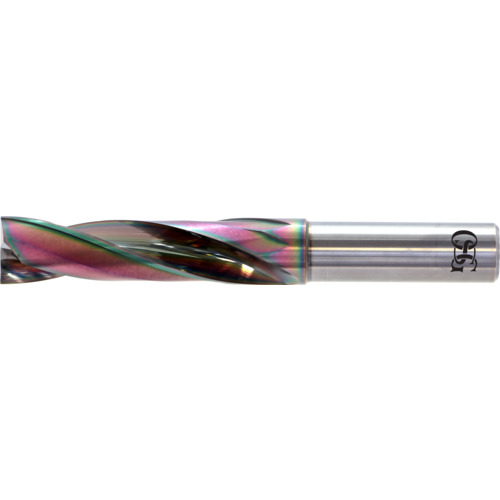

2.8MM ADF-2D DRILL
SC Drill; 2.8 mm Dia. × 4 mm Shank Dia. × 50 mm OAL × 14 mm LCF ; 140 Degrees ; 2xD ; EgiAs ; Series 5700
| Drill Bit Size / Cutting Diameter (DC) | 2.8 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.8 mm | Tool Type | Stub Drill |
| Length Group | 2xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 5700 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 14 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Length Chip Flute (LCF) | 14 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 50 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 14 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.35000
Package Width
.55000
Package Height
.45000
Package Weight
0.025
